Agile Architecture Interactions

This item in japanese

Bookmarks

This article first appeared in IEEE Software magazine and is brought to you by InfoQ & IEEE Computer Society.



Agile development starts to build before the outcome is fully understood, ad­justs designs and plans as empirical knowledge is gained while building, trusts the judgment of those closest to the problem, and encourages continual col­laboration with the ultimate consumers. Architecture establishes a technol­ogy stack, creates design patterns, enhances quality attributes, and communicates to all interested parties. The combination of these two spaces is agile architecture - an approach that uses agile techniques to drive toward good architecture. Successful agile architecture requires an architect who understands agile de­velopment, interacts with the team at well-defined points, influences them using critical skills easily adapted from architectural experience with other approaches, and applies architectural functions that are independent of project methodology.

Architectural Interaction Points

Figure 1 shows a simplified hybrid of scrum[1], Ex­treme Programming[2], and sequential project man­agement that I’ve found effective for guiding archi­tectural work on 14 agile projects over the last eight years.

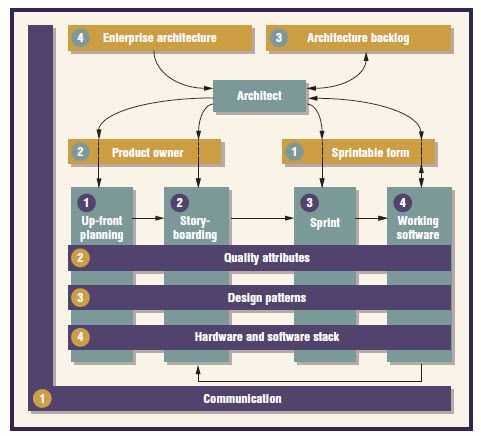

Figure 1. A hybrid framework for agile architecture work. The architect’s involvement during project execution helps achieve project objectives. Table 1 further explains the framework’s elements: interaction points (green), critical skills (gold), and architectural functions (purple).

Table 1 briefly describes Figure 1’s elements; the architectural functions are ones an architect typically performs on projects, although the list isn’t exhaustive.

Table 2 shows how architectural func­tions intersect with interaction points and an ar­chitect’s main concerns at that intersection. Taken together, the three categories and their four items create a framework useful for understanding and guiding agile architecture that’s extensible by add­ing more categories or items on the basis of other priorities or preferences.

Up-Front Planning

Each architectural function begins in an agile proj­ect with up-front planning, much as it does in any project, regardless of methodology. The architect

  • makes major hardware and software decisions, mostly by using existing corporate standards, perhaps by lining up proofs-of-concept for new products;
  • establishes important design patterns at broad[3] and detailed[4] levels;
  • identifies large opportunities for component or service reuse;
  • generates high-level diagrams;
  • outlines quality attributes[5], both technical and business, and baselines their trade-offs[6]; and
  • establishes communication channels by meet­ing with stakeholders to understand their con­cerns and share the general technical direction with them.

Although much of this is similar to the activities of a nonagile approach, up-front architectural work with agile development includes a subtle but impor­tant difference. The architectural direction should include a range of options rather than a specific so­lution. A looser set of architectural possibilities is acceptable based on the agile assumption that the empirical knowledge gathered by all participants while building the system will make better options more evident[7]. An architect does well to never lock in a solution too early, of course, but avoiding this trap is particularly valuable with agile development. Agile’s use of iterations, construction of working software, and encouragement of collaboration pro­duces a feedback loop that provides tremendous op­portunity for all participants to find better solutions later that they couldn’t have understood sooner[8].

For example, on a data warehouse project, the question arose of whether to feed data directly to another area or to build an intermediate data mart. A direct feed was more complex, resulting in lower maintainability and operational efficiency. How­ever, a data mart used more space, resulting in higher cost for the life of the system. The architects observed that either option could meet the busi­ness objectives, that we couldn’t determine the bet­ter design, and that we had confidence in the team to make the right decision within the architectural bounds. As the project executed, the answer be­came self-evident, the team quantified it nicely, and the architects signed off on it. Defining ranges and bounds is more agile than stating specific solutions, but the architects must still define the ranges and bounds up front.

Storyboarding and Backlogs

Up-front planning moves quickly into storyboard­ing and building the product/sprint backlogs, with the architect being a key stakeholder. The architect must attend the early storyboarding sessions and contribute architectural user stories that have sig­nificant foundational or directional influence. He or she must also attend the ongoing storyboarding between sprints to contribute architectural user stories that fine-tune the architecture or correct un­desirable deviations. The architect must work with the product owner to prioritize these stories with the business user stories and build them in conjunc­tion with business functionality in sprints.

The architect often becomes a driving force in storyboarding on the basis of his or her compre­hensive knowledge of both the business and tech­nology. I’ve found that a good architect is well posi­tioned to draw requirements out of the business in storyboard form, explain technical constraints to the business, and restate business needs in technical terms for the team. As the architect does this, he or she can help all parties succeed while smoothly integrating architectural user stories into the story­board and product backlogs.

For example, a data-warehousing program sought to achieve a high level of enterprise data in­tegration. The architects advocated using dimen­sional modeling as the primary approach. They also advocated using the bus matrix as the primary tool for organizing data work because the bus ma­trix facilitated problem decomposition and work iteration[9]. The business (and most of the techni­cal community) had never used the bus matrix, so the architects had to provide extensive facilitation in the first storyboarding session. By the third ses­sion, the product owners came in with their stories printed out in bus matrix form. By the fifth session, the team expressed concern that success was being judged only by the bus matrix components. So, we had to back off a bit and emphasize the value of less visible work such as reusable code components, solving data quality issues, and getting new tools to work. The approach had clearly gathered its own momentum, but the architects’ early facilitation got it started.

Sprint Participation

Writing code is a powerful way to ensure that the architect fully understands the architecture being produced[10], but we’ll assume that the organiza­tion derives high value from spreading architects around, reducing their ability to be fully hands-on. Fortunately, agile offers a solution—trust the team. This requires the architect to collaborate heavily with the team during the sprint, understanding the objectives, and helping with challenging design is­sues[11]. To handle multiple projects in this way, the architect must leave many of the specifics to the team. As long as the architect’s review of the work­ing software continues to indicate high architec­tural quality, the architect can leave the details to the team members, confident that their combined technical knowledge and proximity to the work will keep things on track. That said, engaging in hands-on implementation can become justified when sprints seem to be going off track, architec­turally and otherwise. At such times, the architect becomes a hands-on contributor, collocated with the team, with full accountability to the team for the completion of his or her assigned work.

For example, there’s a long-standing question in data warehouse architecture about when to use normalized versus dimensional modeling and to what degree[12]. The architects addressed this dis­pute early in a particular agile data warehouse project by recommending that both be done in their fullest form for maximum functionality. Af­ter several sprints, the project velocity wasn’t track­ing to the required timeline - a common condition regardless of methodology. To see whether archi­tectural changes could help speed up the project, I participated in a hands-on role for the first time in the fourth sprint. On the basis of both the hands-on work and spirited input from seven experts on two teams, it quickly became apparent that moving all the data through a normalized model to land it in a dimensional model wasn’t necessary to meet the business objectives (for this particular project, not necessarily in general). We’d been planning the normalized layer for over a year; then on the basis of this new insight, we dropped it in under 30 days. Extensive discussions with management and archi­tectural governance were needed, but the change was made by the next sprint and gave the project a solid velocity increase.

Working Software

After each sprint, the team and product owner must present the working software in a for­mal sprint review so that all stakeholders, one of whom is the architect, can observe overall prog­ress and provide feedback. Sprint reviews tend to last only a few hours with many stakeholders vy­ing for conversation time, so the architect should start reviewing the working software several days before the official review. It might still have some work-in-progress aspects, but with a formal sprint end approaching, the software should be stable enough for a meaningful review. Well-run agile projects require the iterative delivery of documen­tation with the working software, including archi­tectural documentation - undocumented code and system functionality shouldn’t be considered work­ing software. Reviewing this documentation as it emerges from each sprint is a useful form of archi­tectural review. What’s more important, the archi­tect should review the working software by getting deep into the code and system functionality.

For example, over the past decade, I’ve accumu­lated several hundred scripts that automate the ar­chitectural analysis of a data warehouse platform or data-processing application. When my teams re­lease working software, I run my scripts. Within minutes, I have reports that thoroughly describe the health of the platform, schema, data model, data quality, and other aspects of the data archi­tecture. Any issues discovered can be addressed in the current sprint or queued in the appropriate backlog. To help the process scale, I offer the teams my scripts so that they can perform automated ar­chitectural inspection without me. Inevitably, they have some valuable script that checks something important that I missed. Together we grow the sys­tem’s architectural quality as we try to one-up each other with the slickest way to automate architec­tural inspection.

An Agile Architect’s Skills

Jumping into these interaction points as an archi­tect can be a turbulent experience. Everyone’s busy, developers might view architects with skepticism, and there always seems to be a business priority that justifies bypassing good architecture. Mini­mizing the turbulence requires many subtle skills that only grueling experience can optimize, but four top the list.

Decomposition into Sprintable Form

Agile development requires the product owner to decompose user stories until they’re small enough to be executed in a sprint while still being substan­tial enough to show business value. Likewise, the technical team decomposes user stories to a form that can be efficiently built within sprints. The ar­chitect’s contribution to decomposition consists of identifying the boundaries of architectural signifi­cance and working with the product owner and technical team to ensure that the overall decom­position of work follows these boundaries. An ar­chitecturally significant boundary exists between any two collections of business or technical func­tionality whose hardware and software, design patterns, or quality attributes are nontrivially dif­ferent. Consider the two examples in Figure 2.

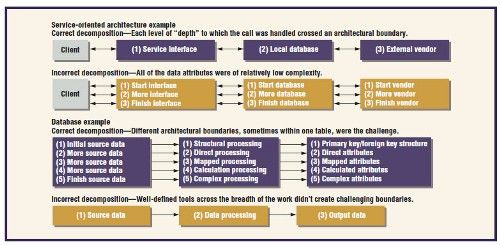

Figure 2. Everyone contributes to decomposing user stories to sprintable form. The architect contributes by leveraging the boundaries of architectural significance, as shown in these examples. The numbers represent sprints or clusters of sprints, depending on the amount of work.

In the first example, we needed to build an enterprise Web service for third-party data using service-oriented architecture (SOA) practices. The service project team used a nine-sprint approach structured around the three major areas of techni­cal functionality - the service interface, the persis­tence layer, and the external data retrieval. In the first few sprints, the team published the service in­terface. A client call to the service returned only one hard-coded record, but the transaction was via a fully functional service call with a well-de­fined contract. Architecturally, this tackled Java, Web services standards, XML, and calling pat­terns while giving the client system a record for building screens to show the business. In the sec­ond cluster of sprints, the team enabled the ser­vice to returned about 100 records from the local database but not from the external vendor. This tackled the database environment, data model, and object-relational mapping layer while showing more cases for business review. In the third sprint cluster, the team made the service call the exter­nal vendor. This tackled the firewall issues, ven­dor data format, and latency requirements. From early on, the growing functionality of the service provided a concrete measure of progress based on working software, letting the team focus on a nar­row set of technical challenges while giving the business visible value.

In the second example, we needed to deliver a large data warehouse environment. From a busi­ness view, data warehouse deliverables lend them­selves nicely to decomposition at the level of data subjects, which tend to map nicely to well-defined table structures. But from a technical view, attri­butes within a table can have significant archi­tectural differences. For example, premiums and losses are basic insurance information that come straight from source systems, but rerated premi­ums and developed losses are complex calcula­tions that can warrant entire systems unto them­selves[13]. From a business view, premiums are one category and losses are another. From an archi­tectural view, basic data attributes are one cat­egory and complex calculations are another. To balance these differences, the team decomposed the work according to complexity, allowing the basic attributes to be delivered quickly while pro­gressively building more complex attributes more slowly.

For each of these examples, and in general[14], the team needed to give as much consideration as possible to making business-centric decomposi­tion the primary approach. But for efficient project delivery, the architectural boundaries must sometimes prevail because iterating across archi­tectural boundaries can open too many simulta­neous challenges, causing risk to the project. If we had tried to decompose the problem across the data in the SOA example the way we did in the data warehouse problem - for example, by moving one-ninth of the attributes end-to-end across nine sprints - the team would have had to address many new technologies at once. This would have caused great trouble, even if the busi­ness preferred to see live data much earlier than it did.

Likewise, if we had tried in the data ware­house example to decompose the problem across technology layers the way we did in the SOA problem, it would have slowed basic attributes to the speed of the difficult attributes. This would have caused severe underdelivery, even if the busi­ness preferred to see its most complex attributes as soon as possible. The inability of these two examples to use each other’s decomposition ap­proach also shows that the decomposition must match the nature of the deliverable.

Advocacy with the Product Owner

The path from decomposed problem to working software runs through the product owner, re­quiring the architect to promote the architectural work’s value with that person. The two most criti­cal aspects of this relate to creating and refactoring the system design and stating the value of quality attributes in terms of business value. Each requires time from the team that will compete with busi­ness functionality. If the product owner doesn’t understand the architectural work’s value, the work will continually get low priority in the prod­uct backlog and result in an inferior architecture.

Fortunately, nearly all design work contributes directly to quality attributes and nearly all qual­ity attribute improvements translate into business value. Maintainability results in business function­ality being built faster in later sprints with quicker enhancement turnaround for the life of the system, resulting in faster speed to market. Scalability re­sults in the system still delivering fast performance when it encounters a huge spike at the peak of an important marketing campaign, preventing the loss of business at critical times. And so on. Nat­urally, this connection from good architecture to business value isn’t unique to agile development. But the power that agile development gives the product owner makes it particularly important to clarify the value frequently, with the most impor­tant advocacy taking place in the first few sprints when there’s high value in building architecturally heavy and hard-to-reverse components[15] that tend to produce less visible working software.

For example, we were producing an intranet application slated to have about 300 data entry screens. We could have produced as many screens as possible in the first few sprints to show fast progress and inspire stakeholder confidence. In­stead, we persuaded the product owner to let the team build a flexible input field-editing design with high reusability across all screens. This resulted in fewer screens in the early sprint reviews, but it in­creased the system’s maintainability. Toward the end of the project, it allowed screen production at a rate not possible had we not carefully explained to the product owner the early architectural work’s value and gained approval to do it.

Architecture Backlog

Like all stakeholders, the architect will want to put functionality into the product more quickly than project velocity will allow. This requires some func­tionality (in this case architectural) to be placed on the product backlog. As with all use of the product backlog, the work is placed in priority order; and if there isn’t enough time or money to get to the work, it might not get done. You could argue that this re­sults in a compromised architecture. Certainly if architectural work receives such a low priority that it never gets done, the architecture will degrade. But proper use of product backlog principles and proper advocacy with the product owner should result in highly valuable architectural work getting done, with less valuable architectural work poten­tially not happening before the project stops.

To keep a clear focus on architecture and to facilitate architectural scoring, a separate but con­nected product backlog called the architecture backlog should track the architecture work. Ac­cording to most literature, there’s just a single product backlog. In practice, I’ve found it useful to maintain several physical product backlogs, each focused on their purpose but all collectively serv­ing as the one logical product backlog. The out-of-scope backlog clarifies what isn’t the goal, the wish list backlog lists work that will probably never get done, and so on. Such modularization helps keep the clarity of the main backlog as high as possible without losing a full perspective. So it is with the architecture backlog. It’s maintained by the ar­chitect, communicated to the product owner and team at the appropriate times and places, and has its items moved to the main backlog on the basis of the product owner’s judgment as influenced by the architect. I’ve found it particularly helpful to give the items a weight and score that provide a grade of the project’s architectural quality as it executes. Such scoring provides a clear, measurable mecha­nism for encouraging the product owner to move stories from the architecture backlog to the main backlog and get them done.

Incremental Enterprise Architecture

The approach to architecture I’ve advocated so far focuses entirely on project execution on the assumption that the architect’s single best oppor­tunity to move system architecture in the right direction comes from guiding the increments of working software built during sprints. Much of this directional influence focuses on meeting the project’s business objectives, but maximum value to the larger organization requires supplementing this guidance with an enterprise architecture (EA) perspective.

Using the four functions we’re limiting ourselves to here, I define EA as the process of ensuring that architects

  • draw from a uniform hardware and software stack,
  • leverage the same design patterns and design pattern language,
  • score against the same quality attributes us­ing the same definitions and a uniform scoring scale,
  • do each of these on both an intra- and intersys­tem basis, and
  • communicate with each other and their prod­uct owners.

The intersystem requirement is based on the ob­servation that system interaction potentially intro­duces a new layer of design patterns[16] and might shift the overall quality attributes - for example, two systems can scale individually but don’t scale when they interact. Most of this definition of EA is independent of agile, but from an agile perspective, the key aspect is the communication and collabo­ration it requires among the architects and from the architects to the technical teams and product owners.

Communication among the architects is best achieved by having a centralized EA practice and formal EA processes. Senior management must create this practice, ensure that it facilitates and measures communication among the architects, and fund it to the degree they’re serious about achieving good EA. Once formed, this practice must establish formal processes and tools, such as an architectural steering committee that pub­lishes uniform architectural scores, a peer review process that checks for issues and provides action­able improvements, and stewardship of a growing body of standards derived from project work. But at all times, two core agile considerations must dominate. First, this is a community of collaborat­ing individuals, not just a process or a collection of artifacts. Second, the power of this process isn’t its formal authority but the legitimacy it derives from its architects’ expertise and their direct participa­tion in project work.

Communication to the agile teams and product owners is best achieved by physically decentral­izing architects and having them incorporate EA concerns at the interaction points. The centralized activities I’ve advocated so far are an important, but not major, part of the architect’s time. An ar­chitect should spend as much time as is reasonable physically collocated with the team and product owner to maximize opportunities for direct com­munication. As the architect advocates aspects of the architecture for the project work, he or she must incorporate EA concerns. For example, when advocating a certain hardware and software stack, base it on not just the project’s needs but also the desired EA direction - likewise with design pat­terns and quality attributes. This is particularly important for intersystem concerns. The architect is uniquely positioned to understand intersystem dynamics that the team and product owner might not, giving the architect a unique responsibility to make hidden problems clear or identify broader opportunities that others might not see. Most of the focus, for everyone including the architect, will likely remain on the business functionality for which the project was funded and on the short-term execution challenges that emerge on any proj­ect. But with a reasonably solid vision of the EA’s goals and effective incorporation of good architec­ture in every sprint on every project across time, the EA state should steadily improve.

For example, in 2009 my company won an in­dustry award for “Creating an Agile Business Intel­ligence Infrastructure.”[17] The company funded the project for business reasons in 2008, but the EA community conceived the architecture in 2006 - two years before any opportunity existed to deliver it. The problem was that the research community operated on a platform isolated from the main data warehouse, resulting in extreme siloing, high data redundancy, and inadequate operational proce­dures. At the same time, the main data warehouse used technologies that didn’t meet the researchers’ needs and had operating norms too restrictive for research work.

On the basis of many years of working with the two departments and understanding their unique cultures and environments, the architects proposed building a middle ground: a layer that used the research platform’s technologies along with the data warehouse’s operational procedures and centralized data assets, but adapting each to balance researcher flexibility, system maintainability, and operational efficiency. The EA solution sat on the shelf for two years. Once a project presented the opportunity to move the EA solution forward, the architects leveraged the project, the success was recognized in both the organization and the industry, and the architecture’s reusability makes it attractive for future projects.

Agility and architecture aren’t at odds. Agile development gives the architect repeated opportunities to work closely with the business and technical teams to continually guide systems in the direction of good architecture. Doing so presents challenges, some inherent in the difficulty of achieving good architecture regardless of methodology, some caused by having to drive to long-term outcomes using a series of short-term events. By simplifying agile methods to a perspective such as the one presented here and being influential at the critical interaction points, a skilled architect can adapt to agile development while staying focused on the core architectural work. This will ensure that both individual systems and their aggregate enterprise behavior meet the needs of the business today, and are technically sustainable for years to come - an architectural value proposition that’s independent of delivery methodology.

About the Author

James Madison is a senior information architect at a large insurance company and the primary instructor for agile training in the enterprise architecture department. His agile projects include Web, full-client, service-oriented architecture, data warehousing, and projects not traditionally agile such as infrastructure building and platform migration. Madison has a master’s degree in computer science from Rensselaer Polytechnic Institute. Contact him at madjim@bigfoot.com.


[1] K. Schwaber, Agile Project Management with Scrum, Microsoft, 2004

[2] K. Beck and C. Andres, Extreme Programming Explained: Embrace Change, 2nd ed., Addison-Wesley Professional, 2004

[3] M. Fowler, Patterns of Enterprise Application Architecture, Addison-Wesley Professional, 2002

[4] E. Gamma et al., Design Patterns: Elements of Reusable Object-Oriented Software, Addison-Wesley Professional, 1995.

[5] L. Bass, P. Clements, and R. Kazman, Software Architecture in Practice, 2nd ed., Addison-Wesley Professional, 2003, pp. 71–98

[6] R. Kazman, M. Klein, and P. Clements, ATAM: Method for Architecture Evaluation, tech. report CMU/SEI- 2000-TR-004, ESC-TR-2000-004, Software Eng. Inst., Carnegie Mellon Univ., 2000.

[7] M. Poppendieck and T. Poppendieck, Lean Software Development: An Agile Toolkit for Software Development Managers, Addison-Wesley Professional, 2003, pp. 38–45, 103–111.

[8] K. Schwaber and M. Beedle, Agile Software Development with Scrum, Prentice Hall, 2002, pp. 23–30

[9] R. Kimball and M. Ross, The Data Warehouse Toolkit: The Complete Guide to Dimensional Modeling,” John Wiley & Sons, 2002, pp. 78–88

[10] V. Subramaniam and A. Hunt, Practices of an Agile Developer: Working in the Real World, Pragmatic Bookshelf, 2006, pp. 155–157

[11] M. Fowler, “Who Needs an Architect?” IEEE Software, vol. 20, no. 5, 2003, pp. 11–13

[12] M. Ross and R. Kimball, “Differences of Opinion,” Intelligent Enterprise, 6 Mar. 2004

[13] J. Madison, Very Large Calculation Systems, Casualty Actuarial Soc., 2009

[14] J. Shore and S. Warden, The Art of Agile Development, O’Reilly, 2008, pp. 214.

[15] M. Fowler, “Who Needs an Architect?” IEEE Software, vol. 20, no. 5, 2003, pp. 11–13.

[16] G. Hohpe and B. Woolf, Enterprise Integration Patterns: Designing, Building, and Deploying Messaging Solutions, Addison-Wesley Professional, 2003

[17] “Best Practices in Business Intelligence: Creating an Agile BI Infrastructure,” Computerworld, 2009;

This article first appeared in IEEE Software magazine. IEEE Software's mission is to build the community of leading and future software practitioners. The magazine delivers reliable, useful, leading-edge software development information to keep engineers and managers abreast of rapid technology change.
