Five Steps to Migrate Unisys Mainframes to AWS

| Posted by Craig Marble , reviewed by Richard Seroter on Jul 16, 2017. Estimated reading time: 17 minutes |

Key Takeaways

  • Cloud providers like AWS have proven to be a viable option for running mainframe application workloads
  • The most effective method to exploit the value of Unisys mainframe applications and data is a transformative migration to modern systems frameworks in AWS, reusing as much of the original application source as possible.
  • Execute a discover, design, modern, test, and implement cycle to move mainframe applications.
  • Some mainframe migration tools can keep existing code in place, but expect to replace components and rethink data storage.

The Mainframe Conundrum

If you have a Unisys mainframe, you may be thinking that cloud computing isn’t an option. You’d like to take advantage of all that cloud computing offers but don’t think it’s possible because it can’t handle your transaction workloads, or the architectures are just too disparate to merge, or even that it’s just plain too hard to do. I used to think the same thing. And until fairly recently, it was true. But cloud computing has quickly matured, as have the offerings of service providers like AWS, and it’s now proving itself to be a viable option for running mainframe application workloads. With help from both AWS and mainframe experts, I’ve assembled a reference architecture for moving Unisys workload to AWS.  But before I go into what changed my mind, let’s set the stage with a little history on Unisys mainframes and the evolution of cloud computing.

Unisys

Unisys can trace its roots all the way back to 1886 and American Arithmometer Company, which later became the Burroughs Corporation. The Unisys Corporation of today was formed in 1986 when Burroughs combined with the Sperry Corporation, which was originally founded in 1910 as the Sperry Gyroscope Company. Unisys and its various predecessor companies are credited with developing the first general-purpose computers, known as BINAC and UNIVAC — truly amazing achievements of the late 1940s and early 1950s that changed the world forever.

When Burroughs and Sperry merged to form Unisys, each company had its own line of mainframe computers, each with its own loyal customer base. There were attempts to unify the two architectures and their respective technologies, but the two distinct systems survive to this day. Unisys ClearPath Libra mainframes originated from the Burroughs line, while ClearPath Dorado’s heritage is Sperry. Even though there are distinct differences between these two sets of mainframe technologies, they are in many ways very similar and share many of the same basic characteristics.

Little did anyone know at that time, advancements in computing architectures and miniaturization would lead to the ubiquitous nature of computers today. They’re everywhere you look: cars, smartphones, tablets, even kitchen appliances like refrigerators, microwave ovens, and yes, even toasters. The average smartphone today makes the early mainframes look like children’s toys; their computing power and speed far exceed that of their ancestors — for a mere fraction of the cost. An incredible evolutionary pace in a relatively short span of time.

Enter Cloud Computing

Flash-forward to around 1996. We began to hear about a new, revolutionary form of data processing called cloud computing. Many of us, including myself, were somewhat skeptical. Although we found it an interesting idea, we wondered whether it was just another trend du jour, and we took a wait-and-see attitude. Many of us figured it would fizzle out like other “revolutions” as soon as the next, shiny computing trend garnered attention. Certainly, those of us with mainframes thought it would have little impact on mainframe computing.

By the mid-2000s, it became apparent that cloud computing had legs. It did not disappear into obscurity like so many failed IT trends before it. Still in its infancy, it was nonetheless proven to be a reliable, cost-effective computing paradigm that had merit — for some. Companies like Salesforce.com began offering business functions such as customer relationship management (CRM) as a service. No longer did you need to invest in hardware and software to track customer data and interaction or to manage and automate sales activities. For a reasonable price, you could set up an account to do all this through any standard internet browser. No servers to buy and manage, no software licenses to track, no upgrades to plan and manage. Cloud computing was real and it had real benefits.

Cloud Computing Goes Mainstream

In 2006, Amazon introduced its Amazon Web Services (AWS) Elastic Compute Cloud (EC2) infrastructure-as-a-service solution, followed quickly by Microsoft Azure’s platform-as-a-service offering in 2008. This seemed to solidify cloud computing’s standing as a solution for more than just specific business needs, like CRM; it could also be used to run virtually any kind of Windows, Linux or Unix application. Using a pay-for-use model, you could migrate existing application workloads and development activities to AWS or Azure cloud environments. No more expensive data centers or co-location facilities to maintain, no more costly hardware upgrades to meet the demands of your expanding business, and through cloud replication, you could even satisfy your back-up and disaster recovery needs without an expensive remote mirroring facility! How awesome was that?

But again, those with mainframes felt the needs being met by their big iron couldn’t possibly be matched by cloud computing. I mean, the high-volume transaction requirements alone were enough to make it a non-starter for enterprise needs. Not to mention the security implications of letting your sensitive data reside “somewhere” in the cloud. I admit I’m guilty of having had the same view. Until late one night in 2010.

The Light Bulb Goes On

I was shopping on Amazon, marveling at being able to buy pretty much anything at any time from the comfort of my couch, with just my laptop and a secure Wi-Fi connection — like millions of other people around the globe. And then it hit me. Never had I not been able to purchase something on Amazon — it was always available. They were satisfying millions of transactions reliably, quickly and securely. Twenty-four hours a day, seven days a week. And not a mainframe in sight.

It was a revelation. It was my “ah-ha moment” that cloud computing was ready for mainframe workload. And, it made me feel like an idiot because it was so obvious — it had been in front of me the whole time. I’d been in the business of migrating mainframe applications to open systems for the better part of a decade, and what was AWS? A huge, distributed, open-systems environment. In fact, it was probably more stable and secure than many companies squeezing the last bit of life out of their existing networks and hardware to avoid the inevitable cost, complexity and risk of upgrading. Migrating Unisys mainframes to open systems was a proven solution for reducing costs and risks as well as opening valuable business functions and data to modern technologies, like mobile devices. Now if only the mainframe market would see the cloud as a viable alternative.

AWS Is Ready for Mainframe Workloads

By 2015, I began to see a shift in the attitude of Unisys mainframe shops. They’d seen the numerous successes and benefits of cloud computing, understood that data security was manageable and that high-volume transaction throughput was there, and we began to get more and more inquiries from Unisys shops looking to slowly dip their toes into cloud computing waters. While they may not have been ready just yet, they understood that it was something they had to look at — the benefits we just too compelling to ignore.

In the meantime, Unisys developed x86-compatible underpinnings that enabled mainframe customers to run existing ClearPath Libra (Burroughs) and Dorado (Sperry) workloads on standard open-systems hardware. While this could potentially be taken to the next step and ported to AWS, the applications are still running in an antiquated, proprietary OS and database platform with a rapidly dwindling pool of skilled programming resources. Additionally, this approach doesn’t take full advantage of the AWS platform. Even though other applications can access DMS, DMSII or RDMS data via replication or other just-in-time translation, it requires an added layer of complexity that increases both costs and single point of failure risks. The same being true for integrating legacy business functions with other applications and processes as stateless services.

The most effective method to exploit the value of Unisys mainframe applications and data is a transformative migration to modern systems frameworks in AWS, reusing as much of the original application source as possible. A least-change approach like this reduces project cost and risk (compared to rewrites or package replacements) and reaps the benefits of integration with new technologies to exploit new markets — all while leveraging a 20- or 30-year investment. The best part is that once migrated, the application will resemble its old self enough for existing staff to maintain its modern incarnation; they have years of valuable knowledge they can also reuse and pass on to new developers. The problem is most Unisys shops, having been mainframe focused for a very long time, don’t know where to start or how to begin. But don’t let that stop you. The rest of this article will give you some guidance.

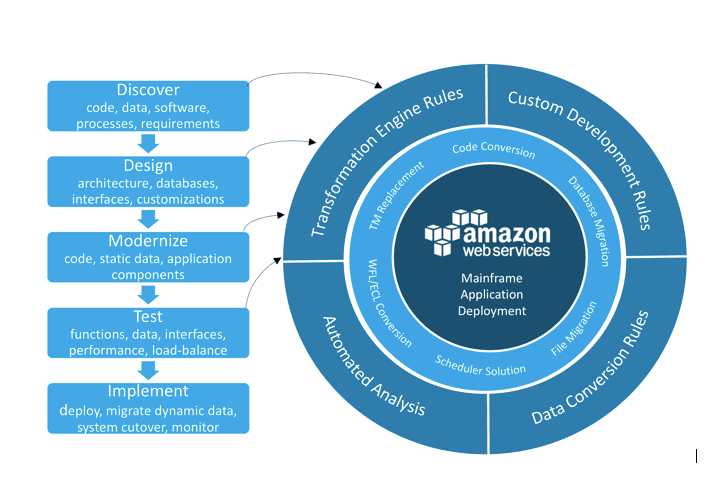

Migrating Unisys Applications to AWS in 5 Steps

I mentioned above that I’ve been in the business of moving mainframe applications to open systems for quite some time. It’s a proven solution, proven technology and a proven methodology that’s been fine-tuned over decades. It’s not hard to extend this process to AWS, which is based on open-systems technology. It’s really the same basic recipe with a few new ingredients:

1)  Discover. The first thing you need to do is catalog and analyze all applications, languages, databases, networks, platforms and processes in your environment. Document the interrelationships between applications and all external integration points. Use as much automated analysis as possible, and feed everything into a central repository. For my projects, I use all this data to establish migration rules in an automated transformation engine. These rules get updated and refined throughout the project.

  1. Design. Analyze all the source code, data structures, end-state requirements and AWS cloud components to design and architect the solution. The design should include details such as types and instances of AWS components, transaction loads, batch requirements, programming language conversions and replacements, integration with external systems, third-party software requirements, and planning for future requirements. You’ll want to select which mainframe migration tools you want to use; choosing ones that require you to make the least amount of change is best since it greatly reduces project costs and risks. However, you will need to design custom-developed solutions to meet requirements that aren’t met by emulation tools. COBOL is almost always migrated, but Algol, MASM, AB Suite (aka LINC), BIS (aka MAPPER) and the like will need to be replaced. Some functions may be replaced by the target operating system or other target-platform components, so do some analysis to find the gaps. This is also where you’ll need to define your data migration strategy. You can keep flat files in their same flat form, but it’s probably best to convert them to relational. Hierarchical data should be converted to relational data using conversions tools or extract-transform-load (ETL) programs.
  1. Modernize. This is an iterative, automated process to make mass changes to source code. If the modified code compiles, it’s ready for unit test. If it doesn’t, then developers review the errors, find a fix, update the migration rules and run the program(s) through again. Many times, error fixes in one program may be applied en masse to fix the same errors in other programs — economies of scale begin to come into play here. As you go through the modernization process, it gets faster and more accurate. This is also when developers write source to replace those legacy components that will not migrate to AWS, and data specialists build out and validate the new databases. Once validated, static data can be migrated to the target database and file systems in parallel with code migration and development. Dynamic data — data that changes frequently — will be migrated during cutover to production.
  1. Test. The good news about testing is that you only need to focus on the code that’s been changed. I’ve written previously on this topic, stating that there is no need to test every line of code since most of it hasn’t changed. Testing should focus on data accesses, sorting routines that may be affected by using ASCII vs. EBCDIC, code modifications to accommodate data type changes, newly developed code, etc. The bad news is that most legacy applications have few, if any, test scripts. Nor is there much documentation. So just because you don’t have to test as much doesn’t mean it’s easy. It’s likely you’ll need to spend time and resources to develop test scripts. However, this is a solid investment since they can be reused for testing the applications going forward in AWS. You’ll also need to perform load and stress tests to ensure your applications are prepared to handle high volumes.
  1. Implement. When migrated applications have been tested, verified and optimized, the process of deploying those applications may begin. In reality, many deployment activities are initiated in parallel with earlier phases — things like creating and configuring AWS component instances, installing and configuring mainframe emulation software, migrating static data, and other infrastructure or framework activities. In some cases, environments may be replicated to achieve this, or existing environments may be repurposed. The specifics of this may depend upon application and data characteristics and any company standards or preferences you might have. After dynamic data is migrated and validated, cutover to production mode can be completed.

Reference Architecture

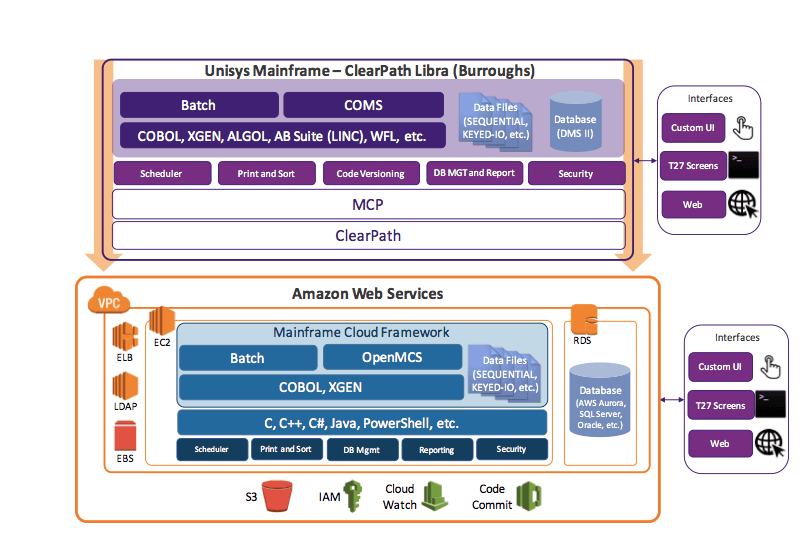

Describing an implementation in words is one thing. But, if you’re anything like me, a visual representation of before and after states makes things a lot clearer. The image below depicts how a Unisys ClearPath Libra system maps to AWS:

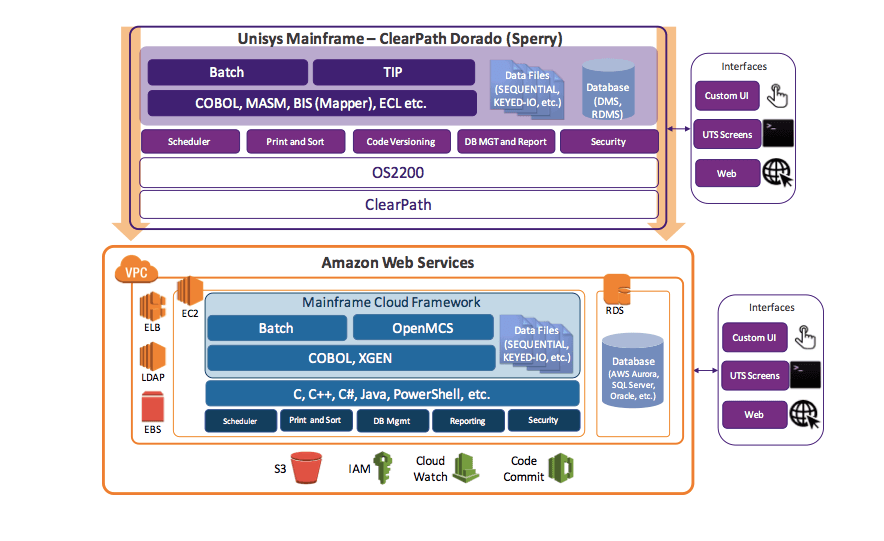

Similarly, the image below depicts how a Unisys ClearPath Dorado system maps to AWS:

Taking a Closer Look

Since every system is unique and every shop has unique requirements and standards, the images above should be viewed as a general guideline. To give you a closer look at the AWS components and how Unisys mainframe components map to them, they are described below at a high level. Keep in mind that I’m not digging into the gory details here; I’m just providing high-level descriptions. There are too many possible configurations to cover them all in one article.

Your Cloud Environment

Amazon Virtual Private Cloud (VPC) lets you provision a logically isolated section of AWS where you launch and manage AWS resources in a virtual network that you define. It’s your private area within AWS. You can think of this as the fence around all the systems you have in AWS. You have complete control over your virtual networking environment, including selection of your own IP address range, creation of subnets, and configuration of route tables and network gateways. You can use both IPv4 and IPv6 in your VPC for secure and easy access to resources and applications.

Computing Resources

Elastic Compute Cloud (EC2) provides secure, resizable compute capacity in AWS. It serves as the foundation upon which your application sits. It’s the container that holds the operating systems, mainframe emulators, application executables and other supporting software that make up your application. Depending on your specific circumstances, you may separate some pieces into their own EC2 instances, or you may run everything into one instance — it depends on your unique requirements. Maybe you’ll have an EC2 dedicated to batch COBOL and another dedicated to online. You may even segregate EC2s by applications. Again, it really depends on your specific circumstances.

Storage

Elastic Block Storage (EBS) can be thought of as a hard drive for storing data — lots and lots of data. EBS serves as the primary storage “device” for EC2 instances running migrated applications. Another storage option is Simple Storage Service (S3). EC2 instances connect to S3 through APIs to access and store object data. S3 can be used for bulk data repositories or “data lakes” for analytics. AWS also offers Amazon Glacier (not shown above) as a low-cost, reliable service for backup and archiving of all types of data. These services, and possibly others not mentioned here, are combined to meet any storage requirements of your mainframe applications. AWS storage services are flexible and reliable. The S3 service was designed to deliver 99.999999999 percent durability and scale past trillions of objects worldwide, so you can rest easy that your data is safe and you can scale to whatever level your future business needs demand.

Databases

Amazon’s Relational Database Service (RDS) is where all legacy relational data will reside. This includes any flat file data that’s been converted to relational. All your DMS and DMSII data would be converted to relational and migrated to RDS. RDMS data would also be migrated here. This container is optimized for database performance. It’s cost-efficient, has resizable capacity and is designed to reduce time-consuming database admin tasks. RDS is available in several familiar database engines, including Microsoft SQL Server, Oracle, PostgreSQL, MySQL and MariaDB. However, you may want to consider migrating your relational data to Amazon Aurora, a MySQL-compatible database that has been optimized for AWS and can perform up to five times faster than MySQL. An analysis of your existing legacy databases and application will reveal all the changes required to migrate your data to Aurora or any other RDBMS running in AWS.

Load Balancing

Applications with a high volume of transactions require something to balance the workload. Amazon Elastic Load Balancing (ELB) does just that. It automatically distributes incoming application traffic across multiple EC2 instances to achieve fault tolerance in your migrated applications. It provides the load balancing capability needed to route traffic evenly among your applications and keep them performing efficiently.

Security

In the AWS environment, you’ll be using Lightweight Directory Access Protocol (LDAP) for accessing and maintaining distributed directory information services. While there are other possibilities, this is most likely where you’ll map your legacy application user IDs, passwords, permissions, etc. Hosting LDAP services on a smaller separate EC2 instance often makes it easier to maintain independently of applications. However, a full analysis of your legacy security environment is required to determine how to best architect and configure security in the migrated system. AWS Identity and Access Management (IAM) enables you to create and manage AWS users and groups and use permissions to allow and deny their access to AWS resources. This is for AWS infrastructure security rather than application-level security.

Monitoring

Every IT system needs to be monitored. CloudWatch is a monitoring service for AWS cloud resources running the legacy applications you deployed to AWS. You use this tool to collect and track metrics, monitor log files, set alarms and automatically react to changes in your AWS resources. This data is used to resolve problems quickly and keep your migrated applications running smoothly — much like you do on the mainframe today. Other cloud-ready monitoring tools are available from third parties as well.

Source Control

Just as you have products and processes to control your application sources and manage application releases on your mainframe today, you need to have a similar set of tools in AWS. AWS CodeCommit is a fully-managed source control service providing secure and private Git repositories. It eliminates the need to operate your own source control system or worry about scaling its infrastructure. CodeCommit is where you’ll store your migrated application source code and binaries, new sources and binaries, and anything else you want to archive.

It’s a Challenge, But Not Rocket Science

Migrating Unisys mainframe applications to AWS might seem like a daunting, impossible task. It’s definitely a challenge. But when carefully planned, managed and executed, the rewards are numerous. Besides the cost savings of the pay-for-use model, once your mainframe application set has been fully deployed on AWS, you’ll have the freedom to integrate proven business logic with all the latest technologies (like mobile and augmented reality), expanding your business to new markets, customers and partners.

Markets and technology don’t stand still — they constantly change. Using technologies and services provided by cloud vendors like AWS, smart businesses can adapt to market demands at dizzying speeds and outpace their competition. With that in mind, migrating mainframe applications to cloud seems more like a necessity than a luxury.

If you’d like to more about this topic, I’ve done a further investigation in this report: Unisys to AWS Reference Architecture

About the Author

Craig Marble is the senior director of Astadia’s legacy modernization practice. Craig has spent over twenty five years in the information technology industry, most of which has been focused on legacy modernization projects. For more information about Astadia, a premier cloud consultancy for businesses expanding to the cloud, visit and follow Astadia at LinkedIn/Astadia, Facebook/AstadiaInc and @AstadiaInc.
