JUnit 5 - An Early Test Drive - Part 2

| Posted by Nicolai Parlog Follow 1 Followers on Aug 15, 2016. Estimated reading time: 13 minutes |

Key takeaways

  • JUnit 5 is coming!
  • It’s evolved API and extension model considerably improve “JUnit the tool”.
  • The modular architecture makes “JUnit the platform” available to other testing frameworks.
  • It is a complete rewrite but can coexist with older JUnit versions in the same code base

In part one of our JUnit 5 coverage, we saw how to set up JUnit and start writing tests, and we saw what changed on the surface. We also discussed the need for the rewrite and how the new architecture separates JUnit Platform and JUnit Jupiter.

In this part two, we will take a closer look at how to run tests and at some of the very cool new features JUnit 5 brings to the table for us developers.

Running Tests

JUnit Jupiter tests can be run as part of a JUnit 4 run or with the new JUnit 5 infrastructure.

Part Of JUnit 4

Remember the five second setup? It used the following artifacts:

org.junit.jupiter:junit-jupiter-api
org.junit.jupiter:junit-jupiter-engine
org.junit.platform:junit-platform-runner

As we discussed in the first part, we need junit-jupiter-api for writing our tests and junit-jupiter-engine to discover and run them. The final piece, junit-platform-runner, contains the class JUnitPlatform, an implementation of the JUnit 4 interface Runner, which basically just tells the engine to run the tests. Used as @RunWith(JUnitPlatform.class) it executes our new tests as part of a JUnit 4 run. Note that for this to work the class has to be a regular JUnit 4 test class, i.e. it has to adhere to the conventions required by your tool of choice (like Maven’s naming convention) and must be public. Using this approach our JUnit Jupiter tests will run under any tool that has JUnit 4 integration.

But there's a small improvement we can make. The runner evaluates the @SelectPackages annotation and can thus be used to run all tests in a package:

package com.infoq.junit5;

import org.junit.platform.runner.JUnitPlatform;
import org.junit.platform.runner.SelectPackages;
import org.junit.runner.RunWith;

@RunWith(JUnitPlatform.class)
@SelectPackages({ "com.infoq.junit5" })
public class TestWithJUnit5 { }

Here, packages are interpreted as a hierarchy so all tests in all packages that start with com.infoq.junit5 will be executed. Because those tests are discovered by the JUnit Platform runner (instead of the tools’ JUnit 4 integration), they are no longer required to be public.

One caveat: If we use a mechanism that utilizes the new architecture (we will discuss that in a second) and that mechanism contains a JUnit 4 engine, those tests will get executed twice: Once during the JUnit 4 run (thanks to the runner we applied with @RunWith) and again during the JUnit 5 run.

With JUnit 5

Let's now look at how we can get the full JUnit 5 mechanism running. It would use the API provided by junit-platform-launcher, and bundle a number of engines to discover and run tests. For now, the only relevant engines are those for Jupiter (in junit-jupiter-engine) and JUnit 4 (in junit-vintage-engine).

IDEs

Since 2016.2 IntelliJ IDEA has basic JUnit 5 support. It is not perfect yet, chasing a moving target, but it works and makes playing around with the new JUnit much easier.

The Eclipse team is working on native support as well so expect that shortly.

Build Tool Support

The JUnit team itself is already hard at work implementing build tool support; a rudimentary Gradle plugin and Maven Surefire provider are up and running, and both projects are planned to be handed over to the respective communities as soon as they are ready to receive them.

There are sample projects for both Gradle and Maven. For more details have a look at the JUnit 5 user guide.

Command Line For The Win!

In case you prefer to take IDEs and build tools out of the loop, you can try the console launcher, which lets you run your tests directly from the command line. To get hold of it you can download the zip. The best way to use it conveniently is to drop the junit-jupiter-api and junit-jupiter-engine artifacts into lib and edit the class path definition in the script in bin to CLASSPATH=$APP_HOME/lib/*.

You can then use it as follows:

# run all tests
junit-platform-console -p ${path_to_compiled_test_classes} -a
# run a specific test
junit-platform-console
    -p ${path_to_compiled_test_classes}
    org.infoq.junit5.HelloWorldTest

If you do have additional dependencies, for example on other test libraries like Mockito, add them to the class path by listing them behind the -p option.

Shiny New Features

We've seen JUnit's new architecture, how to set it up considering current tool support, and which improvements the API we write tests against underwent. Let's now turn to the new features it brings to the table.

Nesting Tests

JUnit Jupiter makes it near effortless to nest test classes, which allows you to organize tests within a class into BDD style groups. Just annotate the inner classes with @Nested:

 class NestedTest {

    int count = Integer.MIN_VALUE;

    @BeforeEach
    void setCountToZero() {
   	 count = 0;
    }

    @Test
    void countIsZero() {
   	 assertEquals(0, count);
    }

    @Nested
    class CountGreaterZero {

   	 @BeforeEach
   	 void increaseCount() {
   		 count++;
   	 }

   	 @Test
   	 void countIsGreaterZero() {
   		 assertTrue(count > 0);
   	 }

   	 @Nested
   	 class CountMuchGreaterZero {

   		 @BeforeEach
   		 void increaseCount() {
   			 count += Integer.MAX_VALUE / 2;
   		 }

   		 @Test
   		 void countIsLarge() {
   			 assertTrue(count > Integer.MAX_VALUE / 2);
   		 }
   	 }
   }
 }

The lifecycle methods @BeforeEach and @AfterEach work here as well and are executed outside-in. This allows for incrementally building a context for the inner tests.

To make full use of this setup it is important that the nested classes have access to the outer test class’s fields. This only works if the nested classes are not static, which is hence a requirement. Since this prohibits the use of static methods, @BeforeAll and @AfterAll can not be used here.

We’ll see how the nested results are displayed right after we introduce another new feature, which cooperates extremely well with @Nested.

Naming Tests

Developers often try to give tests names that express its prerequisites, the tested unit, and even the expected behavior. Fitting this into a method name quickly becomes unwieldy.

JUnit comes with a possible solution for that problem. The new annotation @DisplayName accepts an arbitrary string, which JUnit uses as a display name for the class or method. An example often given by the JUnit team is the following:

@DisplayName("A stack")
class TestingAStack {

	@Test
	@DisplayName("is instantiated with new Stack()")
	void isInstantiatedWithNew() { /*...*/ }

	@Nested
	@DisplayName("when new")
	class WhenNew {

    	@Test
    	@DisplayName("is empty")
    	void isEmpty() { /*...*/ }

    	@Test
    	@DisplayName("throws EmptyStackException when popped")
    	void throwsExceptionWhenPopped() { /*...*/ }

    	@Test
    	@DisplayName("throws EmptyStackException when peeked")
    	void throwsExceptionWhenPeeked() { /*...*/ }

    	@Nested
    	@DisplayName("after pushing an element")
    	class AfterPushing {

        	@Test
        	@DisplayName("it is no longer empty")
        	void isEmpty() { /*...*/ }

        	@Test
        	@DisplayName("returns the element when popped and is empty")
        	void returnElementWhenPopped() { /*...*/ }

        	@Test
        	@DisplayName(
                	"returns the element when peeked but remains not empty")
        	void returnElementWhenPeeked(){ /*...*/ }
	}

}

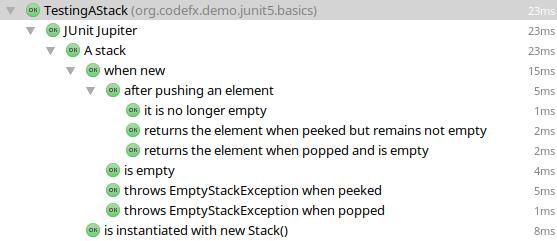

Together, @Nested and @DisplayName, create nicely readable output and should bring joy to the hearts of BDD‘ers!

Parameter Injection

In the olden days test methods were not allowed to have parameters. That made sense then, because after all, what could JUnit possible pass for them? For version 5 the team answered this question with “Whatever you want!”.

So now test methods can have parameters. For each parameter, JUnit will search for an extension to provide a value. Two such extensions are built in, and they can be used to inject a TestInfo or a TestReporter, but neither is terribly useful for everyday test writing.

More interesting is the MockitoExtension, which will inject a mock into each parameter that is annotated with @InjectMock. It demonstrates how the extension API, although still a work in progress, can already be put to good use.

So let’s look at it!

Extensibility

The JUnit Lambda project has a couple of core principles, one of them is to “prefer extension points over features”. This is a great principle to have and it looks like JUnit 5 will implement it well.

Custom Annotations

All JUnit annotations can be used as meta-annotations, i.e. they can annotate other annotations. The Jupiter engine anticipates this and accepts such meta-annotations as if they were directly present on the respective element.

With this, we can easily create custom annotations that are fully functional within JUnit Jupiter:

/**
 * We define a custom annotation @IntegrationTest that:
 * - stands in for '@Test' so that the method gets executed
 * - has the tag "integration" so we can filter by that,
 *   e.g. when running tests from the command line
 */
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Test
@Tag("integration")
public @interface IntegrationTest { }

We can then use it like this:

@IntegrationTest
void runsWithCustomAnnotation() {
    // this is run even though `@IntegrationTest` is not defined by JUnit
}

Neat! A simple but thoughtful feature with great implications for extensibility.

Extension Points

JUnit defines specific points that extensions can use to inject their behavior. Let’s look at the currently defined ones:

TestInstancePostProcessor

Is called with the freshly instantiated test instance so that it can change its state, e.g. by injecting mocks.

TestExecutionCondition, ContainerExecutionCondition

Can evaluate a condition whose outcome determines whether the tests are executed. An example would be to only run tests on specific operating systems or when some external resource is available.

BeforeAll, BeforeEach, AfterEach, AfterAll

These extension points correspond to the setup and teardown methods that we discussed earlier and are called accordingly. One use case might be to initialize an external service before a test and shut it down afterwards.

BeforeTestExecution, AfterTestExecution

Are called immediately before and after a test is executed.

ParameterResolver

Corresponds to the parameter injection that we discussed above and can be used to resolve specific parameters. This can be used to easily inject mocks or services into tests.

TestExecutionExceptionHandler

This point gets called when a test resulted in an exception. It might be used to roll back a database transaction in case of an error or swallow expected exceptions.

There is one interface for each of these extension points. Each defines methods that the Jupiter engine calls at the appropriate time with the context corresponding to that point (like the test instance, the test method, the parameter, the present annotations, etc.). An extension can now chose to implement one or more of these interfaces and thus implement the feature it provides.

To actually apply an extension, the test class or method has to be annotated with @ExtendWith(OurNewExtension.class).

Let’s look at two examples to get a feeling for how this works. If you are interested to see more, check out Rüdiger Herrmann’s post, experimenting with how to replace rules in JUnit 5.

Conditions

@Disabled

We already saw that the @Disabled annotation simply disables a test. Let’s see how.

A class DisabledCondition implements both TestExecutionCondition and ContainerExecutionCondition. The corresponding methods get called with a context that can be used to check whether the @Disabled annotation is present. If so, the methods return a value that indicates that the test is disabled.

In code:

@Override
public ConditionEvaluationResult evaluate(
        ContainerExtensionContext context) {
    return evaluate(context.getElement());
}

@Override
public ConditionEvaluationResult evaluate(
        TestExtensionContext context) {
    return evaluate(context.getElement());
}

private ConditionEvaluationResult evaluate(
        Optional<AnnotatedElement> element) {
    Optional<Disabled> disabled =
            findAnnotation(element, Disabled.class);
    if (disabled.isPresent()) {
   	 String reason = /* … */;
   	 return ConditionEvaluationResult.disabled(reason);
    }
    return ENABLED;
}

Now we know that DisabledCondition is the extension responsible for actually implementing the behavior intended by @Disabled. But why in this case do we not have to use @ExtendWith(DisabledCondition.class) to disable tests?

Besides that annotation there is also an extension registry and it contains the built-in extension to reduce overhead. Although there would be another, slightly devious way to do this. We’ll use it right now for our own condition annotation.

@Available

Let’s assume we had an integration test that depended on some REST service being currently available. To disable such tests when the endpoint is down, we create an annotation @Available that takes a string as a value, so we can use it as follows:

@Test
@Available(“https://www.appdynamics.com”)
void testAuthorSearch() {
    // the test
}

Next we create the class AvailableCondition that looks very similar to the above. It implements the same interfaces (so we can use the annotation on test classes as well as on individual methods) and also forwards both method calls to a private evaluate method that only needs the annotated element.

If the annotation is present, it gets the URL and makes a tentative call. The test is only enabled if the response is acceptable.

Now all we have to do is tell JUnit about our AvailableCondition class. We could annotate all such tests with @ExtendWith(AvailableCondition.class) but that would be tedious. So let’s see the trick I promised. Remember meta-annotations and how JUnit looks for them? We can use that here and annotate @Available with our extension. JUnit will then discover and immediately apply it:

@Retention(RetentionPolicy.RUNTIME)
@ExtendWith(AvailableCondition.class)
public @interface Available {
    String value();
}

I like it.

Injection

Let’s go back to the MockitoExtension, which we mentioned above, and see how it works. It implements ParameterResolver, which defines two methods:

  • The first is supports and is used to check whether the resolver supports the parameter.
  • The second is resolve and has to return the instance that will be injected.

It sounds reasonable to only inject values into parameters that were annotated, so let’s implement that:

@Override
public boolean supports(
        ParameterContext parameterContext,
        ExtensionContext extensionContext) {
    return parameterContext
                .getParameter()
                .isAnnotationPresent(InjectMock.class);
}

Creating the mock with Mockito is easy as pie:

@Override
public Object resolve(
        ParameterContext parameterContext,
        ExtensionContext extensionContext) {
    Class<?> parameterType = parameterContext().getParameter().getType();
    return Mockito.mock(parameterType);
}

(The actual implementation is a little more involved because it allows setting up mocks in lifecycle methods, which means it has to track mocked instances instead of always creating a new one. But this is essentially the pattern.)

We can use a similar approach if we want to inject configured services or other non-trivial objects into our tests.

Summary

And so our deep dive into JUnit 5 comes to an end. Let’s resurface slowly.

We have seen how the problematic extensibility and lacking modularity of JUnit 4 required a complete rewrite for JUnit to move forward. In 2015 a team of seasoned developers gathered around the idea of a coordinated effort. Sponsored by their employers and the crowd they invested a couple of months and came out with a prototype, an alpha version, and recently Milestones 1 and 2.

Its architecture differentiates between “JUnit the platform” and “JUnit the tool”. To satisfy the former, JUnit Platform was created, a launcher that orchestrates different engines. For now there are engine implementations for JUnit 4 (JUnit Vintage) and 5 but in the future all kinds of testing frameworks might provide their own. Each engine runs the tests that were written against its specific API. At this end of the spectrum is JUnit Jupiter, “JUnit the tool”, which we developers use to write tests against and which consists of just a slim JAR containing only the API.

JUnit 4’s rivalling approaches to extensibility, namely Runners and Rules, were replaced by extension points. Such points exists for many steps in JUnit Jupiter’s lifecycle, starting with test instance creation all the way to conditional execution and exception handling.

Above that radical new architecture and extension model is a layer of shiny new features: tests can easily be named and nested and have their parameters injected. Close to the surface the waters get calmer. Jupiter is content with package-visible classes and methods, slightly renames lifecycle annotations, and incrementally improves assertions and assumptions.

A superficial glance might not even spot the difference between the two versions.

So what happens next? We should check out Milestone 2 with our code base in mind and think about the aspects that might not translate easily. These cases are of special interest to the JUnit team!

They, in turn, continue to improve the project. The biggest issue they have recently finished is dynamic test generation, which allows the creation of tests at runtime and might unlock the much-coveted lambda tests. The plan is to release another milestone or maybe even a final version later this year.

I can hardly wait!

About the Author

Nicolai Parlog is a software developer, author, and Java enthusiast. He constantly reads, thinks and writes about Java, and codes for a living as well as for fun. He's the editor of SitePoint's Java channel, writes a book about Project Jigsaw, and blogs about software development on CodeFX. You can follow Nicolai on Twitter.

Rate this Article

Adoption Stage
Style

Hello stranger!

You need to Register an InfoQ account or or login to post comments. But there's so much more behind being registered.

Get the most out of the InfoQ experience.

Tell us what you think

Allowed html: a,b,br,blockquote,i,li,pre,u,ul,p

Email me replies to any of my messages in this thread

Errors regarding extension APIs by Sam Brannen

BeforeAll and AfterAll callbacks are *not* executed "immediately before and after a test is executed." On the contrary, as per the Javadoc, they are executed "before all tests are invoked" or "after all tests have been invoked" respectively.

The TestInstancePostProcessor and ParameterResolver APIs are not described.

On the contrary, the text under TestInstancePostProcessor actually describes the ContainerExecutionCondition and TestExecutionCondition APIs.

Similarly, the text under ParameterResolver actually describes the TestExecutionExceptionHandler API.

Links to ConsoleLauncher should reference M2 artifacts by Sam Brannen

Due to a bug present in M1, the shell and batch scripts in the ZIP file for the ConsoleLauncher are broken.

The links to the ConsoleLauncher and its corresponding ZIP file should therefore point to the M2 artifacts.

Broken link to build tool support by Sam Brannen

Broken link to nested tests example by Sam Brannen

Broken links to TestInfo and TestReporter by Sam Brannen

The correct links are:

github.com/junit-team/junit5/blob/master/junit-...

github.com/junit-team/junit5/blob/master/junit-...

I'm beginning to wonder if articles are proofread before being published on InfoQ. :(

Re: Broken links to TestInfo and TestReporter by Victor Grazi

Sam - Thanks for the corrections, I believe we corrected them all. But ouch! All of those links worked when this was published.

Available by igor ganapolsky

Thank you for this outline of JUnit 5 extensions. Can you explain how
`@Available(“www.appdynamics.com”)`

actually makes a ping request to check the response status?

Re: Available by Nicolai Parlog

This is independent of JUnit 5 - you can use any API you want, for example Java's own HttpURLConnection.

Allowed html: a,b,br,blockquote,i,li,pre,u,ul,p

Email me replies to any of my messages in this thread

Allowed html: a,b,br,blockquote,i,li,pre,u,ul,p

Email me replies to any of my messages in this thread

8 Discuss

Login to InfoQ to interact with what matters most to you.


Recover your password...

Follow

Follow your favorite topics and editors

Quick overview of most important highlights in the industry and on the site.

Like

More signal, less noise

Build your own feed by choosing topics you want to read about and editors you want to hear from.

Notifications

Stay up-to-date

Set up your notifications and don't miss out on content that matters to you

BT
