Machine Learning in Java with Amazon Deep Java Library

Leia em Português

This item in japanese

Bookmarks

Key Takeaways

  • Standards to develop machine learning applications in Java have been lacking
  • JSR 381 has been developed in order to address this gap
  • Amazon's Deep Java Library (DJL) is one of several implementations of this new standard
  • One part of JSR 381 is VisRec for visual recognition of images
  • DJL includes a collection of pre-trained models

https://www.deepnetts.com/blog/deep-netts-community-editionInterest in machine learning has grown steadily over recent years. Specifically, enterprises now use machine learning for image recognition in a wide variety of use cases.  There are applications in the automotive industry, healthcare, security, retail, automated product tracking in warehouses, farming and agriculture, food recognition and even real-time translation by pointing your phone’s camera.  Thanks to machine learning and visual recognition, machines can detect cancer and COVID-19 in MRIs and CT scans.

Today, many of these solutions are primarily developed in Python using open source and proprietary ML toolkits, each with their own APIs. Despite Java's popularity in enterprises, there aren’t any standards to develop machine learning applications in Java. JSR-381 was developed to address this gap by offering Java application developers a set of standard, flexible and Java-friendly APIs for Visual Recognition (VisRec) applications such as image classification and object detection. JSR-381 has several implementations that rely on machine learning platforms such as TensorFlow, MXNet and DeepNetts. One of these implementations is based on Deep Java Library (DJL), an open source library developed by Amazon to build machine learning in Java. DJL offers hooks to popular machine learning frameworks such as TensorFlow, MXNet, and PyTorch by bundling requisite image processing routines, making it a flexible and simple choice for JSR-381 users.

In this article, we demonstrate how Java developers can use the JSR-381 VisRec API to implement image classification or object detection with DJL’s pre-trained models in less than 10 lines of code. We also demonstrate how users can use pre-trained  machine learning models in less than 10 minutes with two examples. Let’s get started!

Recognizing handwritten digits using a pre-trained model

A useful application and ‘hello world’ example of visual recognition is recognizing handwritten digits.  Recognizing handwritten digits is seemingly easy for a human. Thanks to the processing capability and cooperation of the visual and pattern matching subsystems in our brains, we can usually correctly discern the correct digit from a sloppily handwritten document. However this seemingly straightforward task is incredibly complex for a machine due to many possible variations.  This is a good use case for machine learning, specifically visual recognition. The JSR 381 repo has a great example that uses the JSR-381 VisRec API to correctly recognize handwritten digits. This example compares handwritten digits, against the MNIST handwritten digit dataset, a publicly available database  of over 60K images.  Predicting what an image represents is called image classification.  Our example looks at a new image and attempts to determine the probabilities of what specific digit it is.

For this task, the VisRec API provides an ImageClassifier interface which can be specialized for specific Java classes for input images using generic parameters. It also provides a classify() method which performs image classification and returns a Map of class probabilities for all possible image classes. By convention in the VisRec API, each model provides a static builder() method that returns a corresponding builder object, and allows the developer to configure all relevant settings, e.g. imageHeight, imageWidth.

To define an image classifier for our handwritten digit example, you configure the input handling using inputClass(BufferedImage.class). With that you specify the class which is used to represent the image. You use imageHeight(28) and imageWidth(28) to resize the input  image into a 28x28 shape, since that was the original size that was used for training the model.

Once you build the classifier object, feed the input image to the classifier to recognize the image.

File input = new File("../jsr381/src/test/resources/0.png");

// Use the pre-trained model from mlp folder
Path modelPath = Paths.get("../jsr381/src/test/resources/mlp");

ImageClassifier<BufferedImage> classifier =
       NeuralNetImageClassifier.builder()
           // The input is an image file and should be handled as BufferImage
           .inputClass(BufferedImage.class)
           // the image should be resize to 28 x 28
           .imageHeight(28)
           .imageWidth(28)
           .importModel(modelPath)
           .build();

// run inference and get classification result
Map<String, Float> result = classifier.classify(input);

// print out the result
for (Map.Entry<String, Float> entry : result.entrySet()) {
   System.out.println(entry.getKey() + ": " + entry.getValue());
}

Running this code yields the following output.

0: 0.9997633
2: 6.915607E-5
5: 2.7744078E-5
6: 6.1097984E-5
9: 3.8322916E-5

The model identifies five possible options for the digit embedded in the image with the associated probabilities for each option. The classifier correctly predicts that the underlying digit is 0 with an overwhelming probability of 99.98%

One obvious generalization of this case is the question of what to do when you need to detect different objects in the same image?

Recognizing objects using a pre-trained Single Shot Detector (SSD) model

Single Shot Detector (SSD) is a mechanism that detects objects in images using a single deep neural network. In this example, you recognize objects in an image using a pre-trained SSD model. Object detection is a more challenging visual recognition task. In addition to  classifying  objects in images, object detection also identifies the location of objects in an image. It can also  draw a bounding box around each object of interest along with a class (text) label.

The SSD mechanism is a recent development in machine learning that detects objects surprisingly quickly, while also maintaining accuracy compared to more computationally intensive models. You can learn more about the SSD model through the Understanding SSD MultiBox — Real-Time Object Detection In Deep Learning blog post and this exercise in the Dive into Deep Learning book.

With DJL’s implementation of JSR-381, users have access to a pre-trained implementation of the SSD model that’s ready for immediate use. DJL uses ModelZoo to simplify deploying models. In the following code block, you load a pre-trained model with the ModelZoo.loadModel(), instantiate an Object detector class and apply this model on a sample image.

// Define a criteria to search a model that matches user's need
Criteria<BufferedImage, DetectedObjects> criteria =
        Criteria.builder()
                .setTypes(BufferedImage.class, DetectedObjects.class)

                // search for an object detection model
                .optApplication(Application.CV.OBJECT_DETECTION)
                .build();

// Load the model and create a SimpleObjectDectector
try (ZooModel<BufferedImage, DetectedObjects> model = ModelZoo.loadModel(criteria)) {

   // SimpleObjectDetector is a high level JSR-381 API in charge of detect object
   SimpleObjectDetector objectDetector = new SimpleObjectDetector(model);

   // Load image
   BufferedImage input =
       BufferedImageUtils.fromUrl(
           "https://djl-ai.s3.amazonaws.com/resources/images/dog_bike_car.jpg");
   // detect objects
   Map<String, List<BoundingBox>> result = objectDetector.detectObject(input);

   for (List<BoundingBox> boundingBoxes : result.values()) {
       for (BoundingBox boundingBox : boundingBoxes) {
           System.out.println(boundingBox.toString());
       }
   }
}

Here is a new image that we can use.

Running our code on this image yields the following result:

BoundingBox{id=0, x=124.0, y=119.0, width=456.45093, height=338.8393, label=bicycle, score=0.9538524}
BoundingBox{id=0, x=469.0, y=78.0, width=225.19464, height=92.147675, label=car, score=0.99991035}
BoundingBox{id=0, x=128.0, y=201.0, width=210.51933, height=341.7647, label=dog, score=0.9375212}

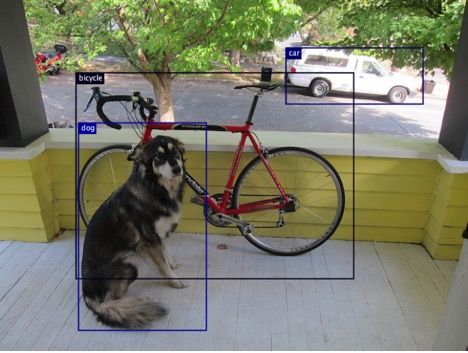

If you want to add  bounding boxes around each detected object onto the image, you can with only a few additional lines of code. For more information, see the complete GitHub example.The model classifies the three objects of interest (bicycle, car and dog), draws a bounding box around each, and provides a confidence level reflected by the probabilities.

It's worth noting that detection accuracy with pre-trained models depends on the images used to train the model. The model accuracy can be improving by retraining or developing a custom model with a set of images more representative of the end application. This approach however is time consuming, and requires access to a large amount of training data. With many ML applications, it's often worth establishing a baseline with a pre-trained model. This can save a significant amount of time associated with gathering, preparing data, and training the model from scratch.

What’s next?

In this post, we just scratched the surface of what you can do with the DJL implementation of the JSR-381 API. You can explore and implement many more models with the repository of pre-trained models in ModelZoo, or bring in your own model.

We also invite you to check out DJL, an open source library built by Java developers at Amazon for the Java community. We’ve attempted to simplify developing and deploying machine learning in Java.  Please join us in our mission.

There are many use cases for DJL, you can develop a Question Answering application for customer service, implement pose estimation on your yoga poses or train your own model to detect intruders in your backyard. Our Spring Boot starter kit also makes it straightforward to integrate ML with your Spring Boot applications. You can learn more about DJL through our introductory blogwebsite and repository of examples. Head over to our Github repository and collaborate with us on our Slack channel.


References


About the Authors

Frank Liu is a Software Engineer for AWS AI. He focuses on building innovative deep learning tools for software engineers and scientists. In his spare time, he enjoys hiking with friends and family.

Xinyu Liu is a Software Development Manager at AWS AI. He is passionate about Machine Learning and large scale distributed systems.

Frank Greco is the Founder and CEO of Crossroads Technologies.  He is a senior technology consultant and enterprise architect working on cloud and AI/ML tools for developers.  He is a Java Champion, Chairman of the NYJavaSIG and runs the International Machine Learning for the Enterprise conference in Europe.  Spare cycles devoted to my guitar.

Zoran Sevarac is a CEO at Deep Netts. He works on building user-friendly deep learning tools for Java developers and on creating Java standards for AI. He is a professor at University of Belgrade and Java Champion. In his spare time he plays guitar.

Balaji Kamakoti is a Senior Product Manager at AWS AI. He works on products that make Deep Learning more accessible to developers. In this spare time, he enjoys playing tennis and Sarod, a fretless string instrument.

A special thanks to the JCP and JSR-381 teams for their valuable contributions:

Kevin Berendsen, Sandhya Kapoor, Werner Keil, Constantin Drabo, Ankara Parida, Melissa Mckay, Buddha Jyoti Prasad, Shreya Gupta, Amit Nagesh, Heather VanCura and Harold Ogle.
